The modified constant time model for the team time trial

2015tdf-stage9-ttt-bmcInclusion of the team time trial (TTT) in stage races like the Tour de France has been the subject of debate for many years. Some think the TTT is fine the way it is and nothing needs to be changed. Some think the TTT has no place in stage races and should be eliminated. And some take the middle ground and argue that the TTT should be included in stage races but the way it is scored needs to be changed. At various times the Tour de France has taken all three of these approaches. In this article I’ll present a model for keeping the TTT and modifying how it is scored.

TTT rotating backThe TTT is one of the most difficult – maybe the most difficult – discipline in professional cycling. The riders must work together like a well-oiled machine to sustain a level of brutal, intense effort over the entire length of the race. The team rides in a tight formation at extremely high speeds. Corners are negotiated with precision and grace. The line of riders constantly circulates as each rider takes a short pull at the head of the team and then drops back and attaches to the end of the line for a “rest” period until his turn at the front comes around again. The TTT is an utterly unforgiving discipline where a weak rider or a single mistake can dash the hopes of the entire team..

A well-practiced time-trial team is a beautiful sight to behold which is why it would be a shame to see it eliminated from the Grand Tours (the Giro d’Italia, the Tour de France, and the Vuelta a España) . However, it comes with a unique set of problems which detractors justifiably point out in arguments for why it should not play a role in stage races of any kind.

team-garmin-sharp-POC-crash-team-time-trial-giro-d-italia-2014Developing a skilled TTT team takes practice, a lot of practice. And therein lies one of the problems with the TTT; most professional teams have very little motivation to devote the time to train for it. The World Tour events are the premier events in professional cycling. In 2015 there are 149 days of racing in World Tour events, 14 one-day races, 134 individual stages spread out over 13 stage races, and the TTT at the World Championships. Of the 149 days of racing there are only 6 TTTs, one in each of the three Grand Tours, 1 in the Tour de Romandie, 1 in the Critérium du Dauphiné, and the World Championship TTT. Competition in the World Championships is based on nationality, not professional team. Thus the pro teams race in 148 days of World Tour racing of which 5 are TTTs. In other words, TTTs make up only about 3% of the World Tour race days a pro team competes in over the course of the year. It’s not enough to make practicing the discipline worthwhile for most teams.

3-grand-tours-logoAs the World Tour is currently structured, the only teams that really need to practice the TTT are the handful that have a serious contender for winning the GC (General Classification, i.e., the overall winner of the race) in one of the Grand Tours. The time in a TTT is taken on the fifth rider to cross the finish line. Every rider who finishes with the team (usually not all of them do) is given this time. This means that the rider who is a contender for the GC gets the time of the fifth best rider on the team. There are often large time gaps between teams in TTTs and over the years many serious contenders for the overall win have fallen too far behind to compete because their teammates were not strong enough or not practiced enough to turn in fast TTT times. Opponents of including the TTT in stage races argue that it shouldn’t be the case that riders are knocked out of contention for the overall win because of time lost by weaker teammates.

As it stands now, inclusion of a TTT in a stage race runs the risk that this single stage can have large and negative consequences for the overall GC competition. If race organizers and fans hope to see a hard fought contest for the GC among all of the top contenders, the best they can hope for is that the TTT doesn’t have any effect on the overall race. It’s no wonder that so few stage races include TTTs.

cannondale_afpIn 2015 the Giro d’Italia and the Vuelta a España addressed these problems by scheduling short TTTs as the first stage of the race. The TTT in the Giro was a short 17.6 kilometers and the Vuelta’s TTT is a very short 7.4 kilometers. The idea is that these short distances will result in smaller time gaps between teams. In addition, holding the TTT on a tour’s first day gives a team additional motivation to practice it because the winner of a tour’s first stage wear’s the overall winner’s jersey (e.g., the yellow jersey in the Tour de France) on the next day and can often keep it for several days of racing.

The problem with scheduling a short TTT on a tour’s first stage is that the TTT is too short to be much of a challenge and it ends up being more of an exhibition than a contest. The Tour de France opted to hold a longer and more challenging TTT as the 9th stage in the 2015 race.  At 28 kilometers the stage was still short but it was more of a contest than the TTTs in the Giro and the Vuelta. However there was a 4:58 gap between first and last place which is more than enough to eliminate every rider on the last place team from contention for winning the yellow jersey.

Specialized-lululemon-wins-uci-road-world-elite-women-team-time-trial-2What can be done to make the TTT more attractive to race organizers who want to include TTTs but don’t want to risk having the results dominate the GC competition? I will suggest an approach called the constant time model that allows for longer and more challenging TTTs and at the same time reduces the large time gaps that typically accompany longer TTTs. After examining the strengths and weaknesses of the model I will suggest a modified version that maintains the model’s strengths and mitigates it’s weaknesses.

In the constant time model every team is given the same base time for the TTT. This can be the time of the fastest team, the slowest team, the average time for all teams, or the median time.  Which time is chosen as the base time makes no real difference for the overall outcome in this version of the model.

The base time for each team is adjusted by a constant amount of time based on the order in which the teams finish. The formula is,

TT = BT + (F-1) LT

where T= time for the TTT, B= the base time, F = the position in which a team finishes, and L=  the time-loss constant. For example, if L= 3 seconds, then the team that finishes first gets the base time, the team that finishes second gets the base time + 3 seconds, the team that finishes third gets the base time + 6 seconds, and so on. There are 22 teams in this years Tour de France which means that application of the constant time model would result in a 63 second time gap between first and last place in the TTT ((22-1) x 3 seconds = 63 seconds). This is a significant amount of lost time for a rider who wants to win the Tour but unlike the 4:58 that was lost by members of the last place team in this year’s TTT it is not enough to eliminate a rider from contention for the yellow jersey.

The organizers of the Tour de France adopted a similar scoring method for the TTT in the 2004 and 2005 tours. The maximum loss was set to 3 minutes and the loss each team suffered was based on convoluted scheme that combined the team’s finishing place with a range of possible times between one team the team that finished just ahead of them. The constant time model is much simpler.

quick-step-ttt-tirreno-stage-1The  constant time model has both strengths and weaknesses.  The main strength of the model is that it reduces the maximum amount of time that can be lost in a TTT in such a way that GC contenders on poor time trial teams face a time deficit that is significant without being insurmountable. This strength can be shown by applying the constant time model to the TTT results from the 2009 Tour de France in the table below. Astana’s winning time is shown in the first row. Subsequent rows show the amount of time lost by each team.

Application of the constant time model with Lt = 3 to the 2009 Tour de France TTT

Team Real time L= 3
Astana 46:29 46.29
Garmin – Slipstream 0:18 0.03
Saxo Bank 0.40 0.06
Liquigas 0.58 0.09
Columbia – HTC 0.59 0.12
Katusha 1.23 0.15
Caisse d’Epargne 1.29 0.18
Cervelo Test Team 1.38 0.21
AG2R La Mondiale 1.49 0.24
Euskaltel – Euskadi 2.10 0.27
Rabobank 2.21 0.30
Quick Step 2.26 0.33
Silence – Lotto 2.36 0.36
Française des Jeux 2.46 0.39
Milram 2.49 0.42
Cofidis, Le Credit en Ligne 2.59 0.45
Lampre – NGC 3.25 0.48
Agritubel 4.18 0.51
BBOX Bouygues Telecom 4.42 0.54
Skil-Shimano 5.23 0.57

As can be seen in the table, application of the constant time model insures that no rider loses all hope of winning the GC because his team did poorly in the time trial.

A weakness of the constant model can also be seen in the preceding table. Astana is unlikely to be very happy about having its 18+ second advantages over all of its important competitors reduced by such large amounts. A further weakness of the model can be seen when it is applied to the shorter TTT results from the 2015 Tour de France

Application of the constant time model the 2015 Tour de France TTT

Team Real Time LT = 1 L= 2 L= 3
BMC Racing 32:15 32.15 32.15 32.15
Team Sky 0:01 0:01 0:02 0:03
Movistar Team 0:04 0:02 0:04 0:06
Tinkoff-Saxo 0:28 0:03 0:06 0:09
Astana Pro Team 0:35 0:04 0:08 0:12
IAM Cycling 0:38 0:05 0:10 0:15
Etixx-QuickStep 0:45 0:06 0:12 0:18
Lampre-Merida 0:48 0:07 0:14 0:21
Team LottoNL-Jumbo 1:14 0:08 0:16 0:24
AG2R LA Mondiale 1:24 0:09 0:18 0:27
Trek Factory Racing 1:25 0:10 0:20 0:30
Team Cannondale-Gramin 1:29 0:11 0:22 0:33
Bora-Argon 18 1:31 0:12 0:24 0:36
FDJ 1:33 0:13 0:26 0:39
Lotto Soudal 1:36 0:14 0:28 0:42
Team Giant-Alpecin 1:37 0:15 0:30 0:45
Team Europcar 1:42 0:16 0:32 0:48
Bretagne-Seche Environnement 1:46 0:17 0:34 0:51
Team Katusha 1:53 0:18 0:36 0:54
MTN-Qhubeka 1:56 0:19 0:38 0:57
Cofidis, Solutions Credits 2:32 0:20 0:40 0:60
Orica-GreenEdge 4:58 0:21 0:42 0:63

When L= 3, application of the model increases the time lost by Sky and Movistar who finished 1 and 4 seconds respectively behind the winner BMC. Reducing Lto 1 or 2 solves this problem but increases the problem of overlarge reductions in the losses suffered by competitors that did not do well in the TTT.

09_16_12_Worlds_TTTw_170_B-767x511These problems can be solved by a modified version of the constant time model. In the modified model the base time (BT) is not set at the stage winner’s time. Instead it is set at a time slower than the winner’s time and time adjustments are only applied to teams that lost more than the base time. For example, set the base time at 1 minute. Every team that finishes less than 1 minute behind the winner gets their real time. The first team that finishes 1 minute or more behind the winner also gets their real time and their time is set as the base time. All of the teams that finished behind the team with the base time have their time adjusted by the constant time model. The results for both the 2009 and 2015 TTTs are shown in the following table with L= 3.

Modified constant time model applied to 2009 and 2015 Tour de France TTTs

2009 Tour de France TTT 2015 Tour de France TTT
Finishing position Team Real time Modified time Team Real time Modified time
1 Astana 46.29 46.29 BMC Racing 32:15 32:15
2 Garmin – Slipstream 0.18 0.18 Team Sky 0:01 0:01
3 Saxo Bank 0.40 0.40 Movistar Team 0:04 0:04
4 Liquigas 0.58 0.58 Tinkoff-Saxo 0:28 0:28
5 Columbia – HTC 0.59 0.59 Astana Pro Team 0:35 0:35
6 Katusha 1.23 1.23 IAM Cycling 0:38 0:38
7 Caisse d’Epargne 1.29 1:26 Etixx-QuickStep 0:45 0:45
8 Cervelo Test Team 1.38 1:29 Lampre-Merida 0:48 0:48
9 AG2R La Mondiale 1.49 1:32 Team LottoNL-Jumbo 1:14 1:14
10 Euskaltel – Euskadi 2.10 1:35 AG2R LA Mondiale 1:24 1:17
11 Rabobank 2.21 1:38 Trek Factory Racing 1:25 1:20
12 Quick Step 2.26 1:41 Team Cannondale-Gramin 1:29 1:23
13 Silence – Lotto 2.36 1:44 Bora-Argon 18 1:31 1:26
14 Française des Jeux 2.46 1:47 FDJ 1:33 1:29
15 Milram 2.49 1:50 Lotto Soudal 1:36 1:32
16 Cofidis, Le Credit en Ligne 2.59 1:53 Team Giant-Alpecin 1:37 1:35
17 Lampre – NGC 3.25 1:56 Team Europcar 1:42 1:38
18 Agritubel 4.18 1:59 Bretagne-Seche Environnement 1:46 1:41
19 BBOX Bouygues Telecom 4.42 2:02 Team Katusha 1:53 1:44
20 Skil-Shimano 5.23 2:05 MTN-Qhubeka 1:56 1:47
21 Cofidis, Solutions Credits 2:32 1:50
22 Orica-GreenEdge 4:58 1:53

Application of the modified model preserves the advantages Astana won over its nearest competitors in the 2009 TTT while at the same time eliminating the penalties suffered using the unmodified model by Sky and Movistar in the 2015 TTT. In addition, all of the teams in both TTTs that benefit from reduced losses suffer a loss of a least 1 minute which is significant, while none of the teams suffer losses greater than 2:05 which leaves every rider with at least a chance of winning the GC.

Sky 2The modified constant time model insures that no team will lose so much time in the TTT that their GC contender is eliminated from contention. The modified model also insures that teams with serious GC contenders have a reason to excel at the TTT because time gaps that are less than or equal to the base time are retained. The model effectively divides the teams in a TTT into two groups. The top TTT teams in the first group are racing for real time differences. Riders on the lower quality teams in the second group face a significant time loss but are not eliminated from having a chance at winning the GC because of poor TTT performance. Race organizers can set the dividing line between these two groups by adjusting the base time value (BT), and can fine tune the maximum amount of time lost by adjusting the time-loss constant (LT).

Stage9TT-BMC-PodiumAdoption of the modified constant time model for scoring TTTs has the potential to invigorate the TTT as a regular component in stage races. Organizers of stage races that are shorter than the three-week grand tours can include a TTT stage without fear that the results will dominate the entire race. Stage races can include longer and more challenging TTTs without fear that the unmodified time gaps will have a serious negative impact on the GC competition. If more race organizers include TTTs in their races, a larger proportion of racing days will be devoted to the TTT, teams will have more motivation to train for it, and they will have more success when they ride it. Instead of being a race where the best thing that can happen is that nothing of consequence happens, the TTT can join the field sprint, the mountaintop finish and the individual time trial as respected and eagerly anticipated stages in a stage race.


Chainring Shifting Techniques

radioshack_fabian_cancellara_attacks_tour_of_flanders_2013_ronde_van_vlaanderen_2013Many people seem to think that the main reason for having different chainrings on a bike is to provide the rider with two completely different sets of gears. In an earlier article we saw that this is not the case. Most of the gears that are available on one chainring are duplicated or have a very close analog on the next chainring. The main benefit that comes from having different chainrings is that the size of the step up or down from one gear to the next differs on each ring. You get smaller and more refined steps on smaller rings. Understanding how this works can help solve some problems riders may have when shifting between rings.

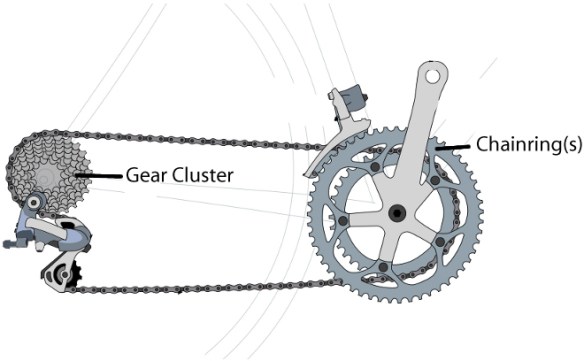

drive-trainA common gearing setup for a bike with a double chainring pairs 53 and 39 tooth rings on the front derailleur with a 12 – 25 tooth gear cluster or cassette on the rear derailleur. The table below shows the gears that are available for this setup expressed in meters of development (MoD).

Gears for a 53/39 double chainring and a 12 – 25 cassette in meters of development.

12 13 14 15 16 17 19 21 23 25
39 7.0 6.5 6 5.6 5.3 4.9 4.4 4.0 3.7 3.4
53 9.5 8.8 8.2 7.6 7.1 6.7 6.0 5.4 5.0 4.6

Meters of development is way to describe bicycle gears that is more commonly used in Europe than the US. It defines gears in terms of the number of meters the bike moves forward every time the pedals make one complete revolution. For example, when you are on the 53 tooth big ring and the 17 tooth cog on the cassette, the bikes moves 6.7 meters forward every time you turn the pedals through one full revolution. MoD along with other methods of defining bicycle gears is presented in more detail in Gearing Part 1: The Basics. I’m using MoD here because it makes it very easy to understand what happens when you shift gears.

An important thing to notice about the gears shown in the table is that gear changes are nonlinear. This means that shifting up or down by the same number of teeth on the rear cassette does not usually result in the same change in MoD. For example, if you are in the big 53 tooth ring and you shift from the 17 tooth cog to the 16 tooth cog on the cassette you go from a 6.7 to a 7.1 meter gear. A shift of one tooth on the cog produces an increase in difficulty of 0.4 meters for every pedal revolution. If you take one more step and make another 1 tooth shift from the 16 tooth cog to the 15 tooth cog you get an increase of 0.5 meters per pedal revolution. It’s harder going from the 16 tooth gear to the 15 tooth gear than it is going from the 17 tooth gear to the 16 tooth gear even though both shifts are carried out by shifting down 1 tooth on the cassette.

Being aware that gear changes are nonlinear can help provide solutions for some common shifting problems.

Shifting into an easier gear on the cassette while climbing

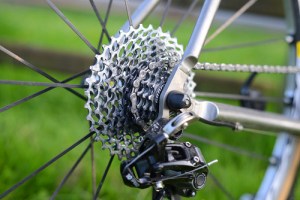

cassetteFinding the right gear on a climb often involves a series of shifts into easier gears on the cassette until you find one that is comfortable for the gradient. If one of these downshifts is too big, you can spin too freely and lose momentum. A solution is to drop into a smaller ring early in the climb and then drop into progressively easier gears on the cassette as the climb gets harder. The reason this works is that the changes between gears are smaller and more refined on smaller rings. When you drop into an easier gear on the small ring you are not dropping as far as you would from the same position on the big ring. For example, shifting from the 17 to the 19 tooth cog on the cassette when you are in the big 53 tooth ring is a drop of 0.7 meters per pedal revolution. The same shift from the 17 to the 19 tooth cog on the cassette when you are in the small 39 tooth ring is a drop of only 0.5 meters. The more refined steps on the small ring make it less likely you will lose momentum on a climb by downshifting too far.

Shifting between rings while climbing

Wait a minute.  If dropping one gear on the cassette is too big a shift when you’re in the big ring, how can shifting to the smaller ring solve the problem? Look at the table. No matter which gear you’re in on the big ring, shifting to the small ring is a larger drop in MoD than staying in the big ring and dropping down one gear on the cassette. Dropping into the small ring looks like it creates a bigger problem.

The solution is to briefly shift into a higher (harder) gear on the cassette right before dropping to the smaller ring.

mtn climbThere are two circumstances where this technique usually comes into play. The first is the situation described above where you drop to the small ring early in the climb because you know you will handle the climb better with smaller drops in MoD with each shift into an easier gear as the climb progresses. To accomplish this without losing momentum you have to quickly shift up through 2 or 3 cogs on the cassette before dropping to the lower ring. Pulling off this triple (2 shifts up on the cassette + 1 shift down to the small ring) or quadruple (3 shifts up + 1 shift down to the small ring) shift is not easy and is going to take some practice.

The second situation where shifting up into a harder gear on the cassette before shifting down to the small ring comes into play happens when the hill is overwhelming you and you need to get into the small ring to keep your momentum going. In this case you usually only need to do a double shift – shift up one gear on the cassette and then drop to the small ring. This is a good deal easier than the triple or quadruple shifts described above.

climbHow do you do these shifts without losing momentum? The trick is to shift quickly with split-second timing so that you spend very little time in the harder gear. Put a surge of extra power into the pedals as you shift up into the harder gear on the cassette. As soon as the chain catches in the teeth of the gear drop down into the smaller ring. When you get the timing right you will be spending a quarter to a half of a single pedal revolution in the harder gear on a double switch.

Getting the timing right will take some practice. If you stay in the higher gear too long you’re in too big a gear for the gradient and you lose momentum. If you drop into the smaller ring before the rear derailleur shift is complete, you run the risk of dropping the chain and turning a small problem into a big one. The goal is to drop into the smaller ring a split second after the rear derailleur shift into the harder gear is complete.

When to shift into the big ring ring from the small ring

Thus far we have looked at shifting to the small ring from the big ring but there are times when doing the reverse and shifting to the big ring from the small ring can pose its own set of problems. I once fielded a query from a rider who was comfortable riding in the small ring but was starting to ride with stronger cyclists and needed the bigger gears on the big ring in order to keep up. He was shifting up into progressively more difficult gears until he reached the limit on the small ring at which point he shifted up into the big ring. When he got onto the big ring the gear was too hard for him and he had to shift into easier gears at which point he fell behind the people he was riding with.

One possible solution is to drop back into an easier gear on the small ring before you shift up to the big ring. This usually doesn’t work because you are likely to lose too much momentum while you are in the easier gear on the small ring.

Gears for a 53/39 double chainring and a 12 – 25 cassette in meters of development

12 13 14 15 16 17 19 21 23 25
39 7.0 6.5 6 5.6 5.3 4.9 4.4 4.0 3.7 3.4
53 9.5 8.8 8.2 7.6 7.1 6.7 6.0 5.4 5.0 4.6
Fleche Wallonne Femmes - 23/04/2014 - Huy/Huy - Marianne VOS

Fleche Wallonne Women – 23/04/2014 – Huy/Huy – Marianne Vos

The solution is to shift over to the big ring earlier rather than waiting until you’ve maxed out the small ring. Take a look at the MoD values in the table and remember that the increase in difficulty as gears get harder is nonlinear. If you wait until you’re in the 13 tooth cog on the small ring to switch over to the big ring you’re getting hit with a MoD increase of 2.3 meters. This is a huge jump in difficulty. If you shift into the big ring while you’re in the 23 tooth cog on the cassette you’re looking at a MoD increase of only 1.3 meters. This is still a big jump but it’s not nearly as difficult as the 2.3 MoD increase you get if you shift near the top of the small ring. Moreover, if you work up to the 13 tooth gear from easier gears on the big ring, the final step from the 14 tooth gear is much easier (a MoD increase of 0.6 meters) than jumping to the big ring 13 from the small ring 13 (a MoD increase of 2.3 meters).

The technique for carrying out the shift into the big ring is similar to the one described for doing a double shift to get from the big ring to the small ring. Put a surge of power into the pedals and then shift up into the big ring. The jump in MoD may be too large to maintain and if it is, you can quickly shift down to an easier gear on the big ring. When carried out correctly, this will put you in a bigger gear than you were in on the small ring without losing momentum.

downhillSwitching to the big ring sooner rather than later can be useful in any situation where you expect to use the high MoD gears on the big ring. For example, when you have a downhill followed by a flat you can often pick up enough speed on the downhill to keep a large gear turning on the big ring when you get to the flat. If you do the descent in the small ring and then try to switch to the big ring when you get to the flat, the increase in MoD may be too much to handle. If you shift into the big ring early in the descent and keep shifting into harder gears as your speed increases on the downhill, you will be flying by the time you reach the bottom and you’ll be able to maintain a bigger gear for a longer time on the flat.

The Safety in Numbers Effect


Does the chance of a cyclist being involved in a fatal accident increase as the number of cyclists on the road increases? The answer may surprise you. While the raw number of cycling fatalities does increase as the number of cyclists on the road increases, the chance that any one of those cyclists is killed is likely to decrease. This negative correlation between the number of cycling fatalities and the number of cyclists on the road is called the safety in numbers effect.

Safety in mumbers

The graph above illustrates the safety in numbers effect by plotting the number of kilometers cycled per inhabitant along with the number of cycling fatalities for every billion kilometers traveled for various countries. The graph is from a research report published by the OECD (Organisation for Economic Co‑operation and Development) titled “Cycling Health and Safety.” The safety in numbers effect generally holds for pedestrians as well as cyclists.

OECD_LOGO_1The OECD report cautions against thinking that the negative correlation seen in the graph leads to the conclusion that increasing the number of cyclists causes a decrease in the likelihood of cycling fatalities. The report also mentions that there has not been very much research into the possible causes of the safety in numbers effect and goes on to suggest several factors that may be involved.

  • Awareness: The more cyclists there are on the road, the more drivers will be aware of them. The more aware drivers are of cyclists, the less likely they are to hit them.
  • Expectancy: The more cyclists there are on the road, the more drivers expect to see cyclists. The more drivers expect to see cyclists, the more likely they are to actually see them and avoid hitting them.
  • Collective vigilance: The more cyclists there are on the road, the more likely it is that potentially dangerous or threatening situations will be noticed by at least one of them. Those who notice potential threats will communicate this information to the other cyclists who then have a greater chance to avoid the threat.
  • Knowledgeable leaders: The more cyclists there are on the road, the greater the chance that at least one of them will be knowledgeable about route and traffic conditions. The knowledgeable cyclist may lead the others along safer routes.

It may also be the case that safety and the number of kilometers ridden are linked in a causal loop. The safer cycling is, the more people are likely to cycle, and the more people cycle, the more opportunity there is for awareness, expectancy, collective vigilance or knowledgeable leaders to have an effect in reducing fatal accidents.

Hovenring 3

The Hovenring in the Netherlands is the world’s first suspension bridge designed to allow cyclists and pedestrians to safely cross a busy highway intersection.

Another factor that almost certainly plays a role in both increasing the number of kilometers ridden and in reducing fatalities is the presence of a well-developed cycling infrastructure. The Netherlands, Denmark, and Germany, the three countries with the best fatalities to kilometers ridden ratios shown in the graph, also have exceptionally well developed cycling infrastructures.  The Netherlands and Denmark are especially notable in this regard. The United States, on the other hand, has generally lagged behind the rest of the developed world in building well-designed and well-maintained cycling infrastructure.  The better the infrastructure, the more people are likely to use it to cycle safely.


Dutch cyclists

There is an additional factor to consider that is highlighted by the Netherlands which has by far the lowest ratio of fatalities to kilometers traveled of any of the countries shown in the graph. In addition to having an excellent cycling infrastructure, the Netherlands has a long-established cycling culture. As early as 1911 the Netherlands had more bicycles per capita than any other European country. When privately-owned cars became more affordable after Word War II, cycling became less popular as a means of transportation. As the safety in numbers effect would lead you to expect, this was accompanied by an increase in cycling fatalities. During the 1970s widespread demonstrations took place in the Netherlands protesting the number of child cyclists who were killed on the road. The government responded by restricting the use of motorized vehicles in cities and towns, building cycling infrastructure, and embarking on a program of safety education for both cyclists and drivers that placed the Netherlands at the forefront of countries that make serious efforts to incorporate cycling into people’s daily lives. Children in the Netherlands are taught how to cycle safely from a very young age; adults are tested on their ability to share the road with cyclists as part of the process of getting a Dutch driver’s license. According to a press release from the Netherlands Ministry of Transport, Public Works and Water Management, in 2004 the Netherlands was the only European country in which there were more bikes than people, and in 2007 26% of all trips made in the Netherlands were made by bike. As a society the Netherlands has embraced a culture of cycling and this has played an important role in producing both the very large number of kilometers traveled by bike per inhabitant and the very low number of cycling fatalities shown in the graph.

Any or all of these factors – a strong social and cultural history of cycling, the presence of an excellent cycling infrastructure, driver awareness and expectation, cyclist vigilance and leadership – may have a role to play in explaining the safety in numbers effect. The negative correlation between fatalities and the number of kilometers ridden is simple and easy to see, the causal factors that produce this correlation are complex and difficult to tease apart.

(This article has been cross posted to The Info Monkey.)

A Bike Share Map

DC bike share mapOver 700 cities around the world have implemented bike sharing systems that allow people to make use of public bikes for short trips within the city.  The motivation is to reduce air pollution, noise and vehicular traffic congestion while providing people with the health benefits that come from daily exercise (which has been shown to decrease the costs of city-provided health services). The bikes can usually be used for free or for very low cost.

Oliver O’Brien, a researcher in the Geography Department of University College London has built a bike-share map that tracks the locations of bikes in the bike share systems of about 100 cities throughout the world. You can start with a global map and then click on the city of your choice to check out the more-or-less current state of the bike-sharing stations in the city. For example, here are the maps for Washington DC, New York, London, Paris, and Rio de Janeiro.

The circles on the city maps represent bike-share stations with the size of the circle indicating the number of bikes it can hold and the color indicating how full it is. For bike-share systems that allow it, the map updates about every two minutes. Some systems don’t permit updating this frequently and for this reason O’Brien advises against using the map to find out if there is a bike or an open space for a bike near you at any given moment. Unfortunately, the map does not tell you how often each city updates.

bike share graphsThe bike-share map also has a tab that opens up a set of graphs showing how many docks are operating, how many bikes were in use and the imbalance in distribution of bikes over the system during the previous 24 hours.  In addition there is an animated version of the map that shows the docking station changes over the previous 48 hours which can be accessed from a tab at the bottom of the static map.

O’Brien has a blog that includes a post about the bike-share map in which he writes about things like where the data displayed in the map come from, and why some cities that have bike-share systems are not included on the map.

This article has been cross-posted to The Info Monkey.

Cycling and Weight Loss Part 2: Metabolic Homeostasis

scale_caloric_balanceThis is the second in a series of posts about losing weight on the bike. Throughout this discussion it’s important to keep in mind that eating has many consequences for health, athletic performance and weight loss.  The “best” diet for losing weight is unlikely to be the “best” diet for maintaining either your health or a high level of athletic performance.

In the first part of this series, Riding the Bike to Lose Weight, I pointed out that there is a modifying factor that affects the basic  relationship between caloric intake and weight loss.  The basic relationship is that if you ingest fewer calories than you burn during the course of a day, you will lose weight, if you ingest more than you burn, you will gain weight, and if caloric intake and caloric burn are about equal, your weight will remain stable.  The modifying factor is metabolic homeostasis.

If you’re not familiar with the jargon, “metabolic homeostasis” is incomprehensible and useless gobbledegook.  In the context of thinking about weight loss, “metabolic” refers to the chemical processes that are involved in the breaking down of food in the digestive system and the ways the results of that breakdown process, such as glucose, are used by the body.

A homeostatic system is one that acts to keep itself at an equilibrium point or within an equilibrium range.  A common example is the climate control system in your house or car.  You set the thermostat for a high and a low temperature and the climate control system keeps the temperature of your house or car within this range.  If it gets too hot, the air conditioning is turned on; if it gets too cold, the heat comes on.

The human body is a brilliant homeostatic system in a number of ways.  If the core temperature of the body gets too hot, you sweat to rid yourself of excess heat; if core temperature gets too cold, you shiver to generate more heat.  If blood glucose drops too low, the system reduces glucose uptake at the muscles to maintain glucose supply to the brain.  Cyclists in the heat of battle sometimes wish it didn’t work this way as they go into a bonk and their legs shut down.

caloric homeostasisMetabolic homeostasis refers to the body’s mechanisms for maintaining a balance between caloric intake and caloric burn.  This homeostatic system is more complicated than previously thought and much about it is currently not well understood.    I’ll try to summarize some of the issues that come into play when considering weight loss, exercise and metabolic homeostasis.

One thing that appears to be soundly supported by the available evidence is that the body adapts to a regular, sustained change in the relationship between caloric intake and caloric burn by reducing the number of calories needed to fuel the same amount of activity.  Here’s an example of how this works.  Suppose your caloric intake and burn are balanced; on a typical day your regular activities burned 2000 kilocalories and you ingested about 2000 kilocalories in food during the day.  Your weight would remain stable.  Then you go on a diet and ingest only 1800 kilocalories a day.  At first you would lose weight because the 1800 kilocalories you ingest is less than the 2000 kilocalories you burn each day.  However, if you stayed on this 1800 kilocalorie per day diet for a period of time, your body would adapt to that reduced caloric intake by enabling you to engage in the same activity you were doing every day before you began the diet while only burning 1800 kilocalories.  Once that happens caloric intake and caloric burn are balanced again and you stop losing weight.

Reduction-in-RMR-GraphA slightly more technical way to express this idea is that the basal metabolic rate will change to maintain metabolic homeostasis.  Roughly speaking, basal metabolic rate is the rate at which kilocalories are burned to support normal daily activity.  When the balance between caloric intake and burn is disrupted through dieting or exercise weight is initially lost because fewer kilocalories are ingested than are burned and the basal metabolic rate has not yet adapted to the change.  However, after a period of sustained dieting or exercise the basal metabolic rate adjusts to the reduction in kilocalories ingested (by dieting) or the increase in kilocalories burned (by exercise), a balance between caloric intake and burn is once again achieved, and weight loss stops.

Maintaining metabolic homeostasis through a reduction in basal metabolic rate means that there’s only so far you can go when trying to lose weight by dieting, exercise or both.  If you want to keep losing weight through dieting, you have to continue reducing the number of kilocalories you ingest every day.  If you want to continue losing weight through exercise such as riding the bike, you have to keep increasing the intensity of the exercise.

This is why it was recommended in Riding the Bike to Lose Weight that you continually try to ride harder, longer, faster, stronger every time out on the bike if you want to lose weight.  If the intensity of the exercise remains the same, basal metabolic rate will adapt to it and weight loss will stop.  If the intensity keeps increasing, basal metabolic rate will lag behind and weight loss can continue.

If this were the whole story about metabolic homeostasis it would be simple.  If you enjoy riding the bike, figure out ways to put more time and energy into riding the bike and forget about worrying about calories and weight loss.  You will be doing something you enjoy, you will be thinking about something you enjoy and you will most likely lose weight.  The hope is that when you get to the point where you are putting all the time and energy you can or want to into the bike, your weight will have dropped to a level you like.

Unfortunately, it’s not this simple.  Riding the bike (or any other form of exercise) makes you hungry, makes you want to eat more. In addition, men and women are affected differently by this increase in the desire to eat after exercise.  More on this in the next post in the series.

Aerodynamics Part 3: Shaving Your Legs

The day after I posted Aerodynamics Part 2 about some small and free or relatively cheap things you can do to reduce air resistance and drag I came across this video.

We’ve all heard that shaving your legs makes you faster.  Does it?  Check this out.

Over the 40 km length of their trial runs, differences in how hard the rider is going over relatively short periods of time may well be sufficient to account for the differences they observed and they don’t address how, or even whether, they controlled for differences in effort over the trials with and without leg hair. From what you can see in the video it seems pretty clear they didn’t use physiological measures to control for effort.  Looking at the set-up in the video I would guess average speed was used as a control but without more information no hard conclusions can be drawn.  However, the magnitude of the differences they observed certainly indicate shaving your legs is something worth exploring further if you want to reduce air resistance and drag.

Aerodynamics Part 2: Small Things That Reduce Air Resistance and Drag

PIC372688193Tony Martin won the UCI World Time Trial Championship in 2011, 2012 and 2013, and is the odds on favorite to win it again this year. He is an incredible bike rider and by all accounts an incredibly nice guy; he once caught and passed David Millar in a time trial and apologized to Millar as he went by. The picture is of Martin time trialing in full aerodynamic mode at the 2013 Criterium du Dauphine which is an eight-day race that Martin won on the basis of the insurmountable lead he built by winning the time trial.

If you want to minimize air resistance and drag as much as possible, you ride like Martin rides in a time trial. Unfortunately, this is beyond the reach of many riders for a number of reasons. First, it’s expensive. Between his bike frame, wheel set, skin suit, helmet, etc., Martin is moving well over $10K worth of gear in the photo. Next, an optimized wind tunnelaerodynamic position is difficult to accomplish. Differences in body mass and shape mean that the position that optimizes both aerodynamics and power output is different for every rider. Finding that position takes hours of iterative testing and refinement in a wind tunnel. In addition, a full aerodynamic tuck is difficult to maintain and usually takes many hours of practice to be able to hold for any length of time. Simply strapping a set of aerobars unto your bike isn’t going to do it. Finally, riding in an optimal aerodynamic position is difficult. The position is uncomfortable and the bike is more difficult to control when you’re stretched out on aerobars.

Although going full aero involves a significant investment of time, effort and money, there are a number of simple things you can do that will reduce air resistance and drag that are relatively easy and are either free or cost the price of a new jersey. Taken individually, none of these things will result in a huge reduction in air resistance but small things add up and they can make a noticeable difference over a long ride.

Get Low

The biggest single thing you can do to reduce air resistance without spending any money is to reduce the surface area on the front of your body that is exposed to the wind as you ride forward. It’s easy to do and you don’t need aerobars to do it. Bend at the waist and lean forward. The lower you get the better off you’ll be but almost any degree of forward lean will reduce the area of your torso that is exposed to the wind.

Tour of the Battenkill 2012This is easiest to do if you have road handlebars on your bike. Moving your hands from a position on the flat upper bar on either side of the stem to the brake hoods will bring you down a little bit. Keeping your hands on the hoods and bending your elbows will bring you down more. You can get fairly low with your hands on the brake hoods by bending your elbows to the point where you’re resting your forearms on the handlebars like the rider in the picture. You can usually get even lower by riding with your hands on the drops.

Elbows and Knees

PIC298104874While the exact elbow position for optimal aerodynamic riding depends on the rider’s body size and shape, it’s generally the case that tucking the elbows in is better than bending them out. Many riders, however, tend to bend their elbows out in a variety of circumstances. When you bend at the waist and lean forward to get low, make sure to pull your elbows in rather than bend them out. People also tend to bend their elbows out when they are leaning into a climb, working hard to maintain a strong tempo, gripping the bars tightly, or are just tired. Pay attention to where your elbows are and if they are flaring wide, bring them in.

Knee position is an aerodynamic factor that people sometimes miss because it’s usually not obvious in pictures of riders who are time trialing. Take a look at where your knees are relative to your body while you’re pedaling. If your knees are spread open so that they form a V-shape with your body, your legs are funneling air into your body and increasing the air resistance and drag you have to overcome. Ride with your knees pulled in toward the top tube on your bike. Obviously, you don’t want your knees banging into the top tube but closer to the tube is better than further away. When you do this, don’t accomplish the “knock-kneed” position by flaring your ankles out.

Your Jersey

Wear a tight jersey. If your jersey is loose or baggy, it is catching the wind and increasing air resistance by acting like a sail that is pulling you in the opposite direction. Don’t worry about what you look like. How you look in your exercise clothes may be a big deal for gym bunnies but for riders the big deal is how smart and how well you ride. If you’re overweight, you’re overweight; there are things you can do to change that but wearing a loose jersey isn’t one of them. Don’t worry about it. Ride smart.

???????????????Keep your jersey zipped up. Partially unzipping a jersey allows air to circulate around the upper body to the back where it is trapped by the jersey. It’s like strapping a sail facing the wrong direction on your bike. You would think this would be a no-brainer but you see riders all the time from beginners to pros who have expensive aero gear on their bike and who are trying to go fast with their jersey partially unzipped.


watts and wind resistence_ key pointsThe graph discussed in Aerodynamics Part 1 illustrates that air resistance is negligible when you are going slow but it quickly ramps up with velocity until it becomes the overwhelming force you have to overcome to move your bike forward. While all of the tips and techniques offered in this post have a small effect in reducing air resistance they are all easy to do. They are also either cost-free or cost, at most, the price of a new jersey. Small benefits add up and their combination can make the difference between a ride that is exhausting and a ride that is exhilarating.
